The Patrol range of commercial quality RIBs are designed to work both excellently as a long distance family cruiser or a hardcore work boat. Built to withstand the toughest of conditions.
The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions./span>
The range offers something for almost every requirement, from Sailing club support to Police and Rescue applications.
The Patrol boats carry large loads and plane quickly and easily with little horse-power. For charter boat and commercial operators, the modular set-up option means that we can build a layout that suits your needs. These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.
STANDARD FEATURES
- ORCA® Hypalon or PVC tube
- Welded seams (PVC)
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Integrated under-deck fuel tank
- Tow bridle points
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Highfield dry bag
- Foot pump, oars, repair kit
OPTIONAL EQUIPMENT
- Single Jockey or Bolster
- Jockey Console
- Rollbar
- Boat Cover
- Brushed Foam teak finish deck
- Bow step with roller
- Rear tow post
- Bow locker with seat cushion
| Overall Length | 5.00 m | 16' 5" |
| Internal Length | 4.16 m | 13' 8" |
| Overall Width | 2.28 m | 7' 6" |
| Internal Width | 1.20 m | 3' 11" |
| Dead Rise | 24° | |
| Tube Diameter | 52 cm | 20" |
| Number of Air Chambers | 6 | |
| Maximum Load | 1051 kg | 2317 lb |
| Maximum People | 10 | |
| Boat Only Weight* | 441 kg | 972 lb |
| Maximum Power | 100 hp | |
| Engine Shaft | L | |
| Fuel Tank | 90 l | 23.7 gal |
| Design Category | C | |
| PACKAGE SIZE FOR BOAT ( L X W X H ) | 470 x 130 x 105cm | 15'4" x 4'3" x 3’5" |
| PACKAGE SIZE FOR SUS900 ( L X W X H ) | 175 x 85 x 105cm | 5’8” x 2’8” x 3’5” |
| PACKAGE SIZE FOR FS900 ( L X W X H ) | 88 x 56 x 110 cm | 2’9” x 2’ x 3’6” |
Includes console, bolster, seat and rollbar

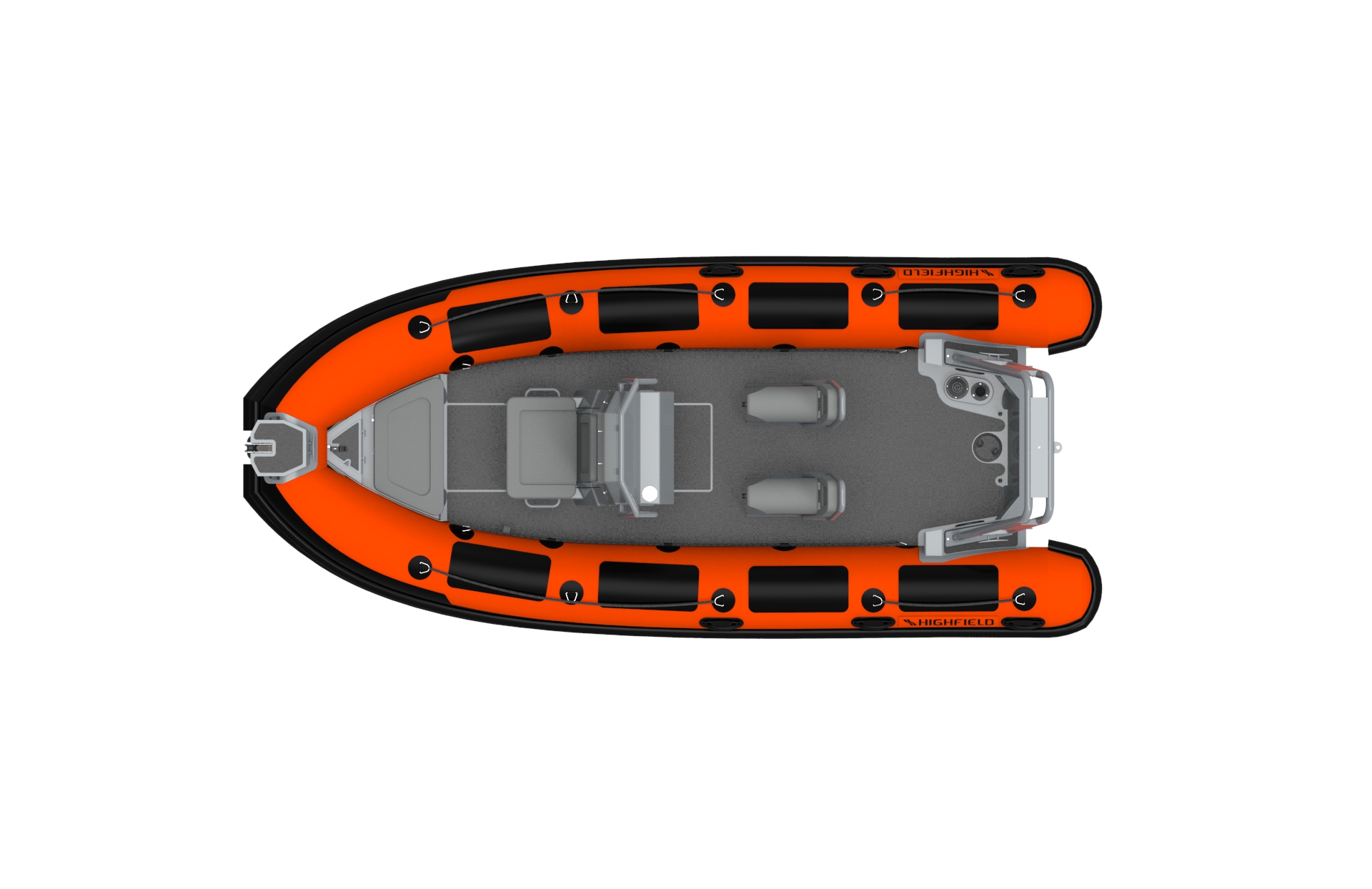

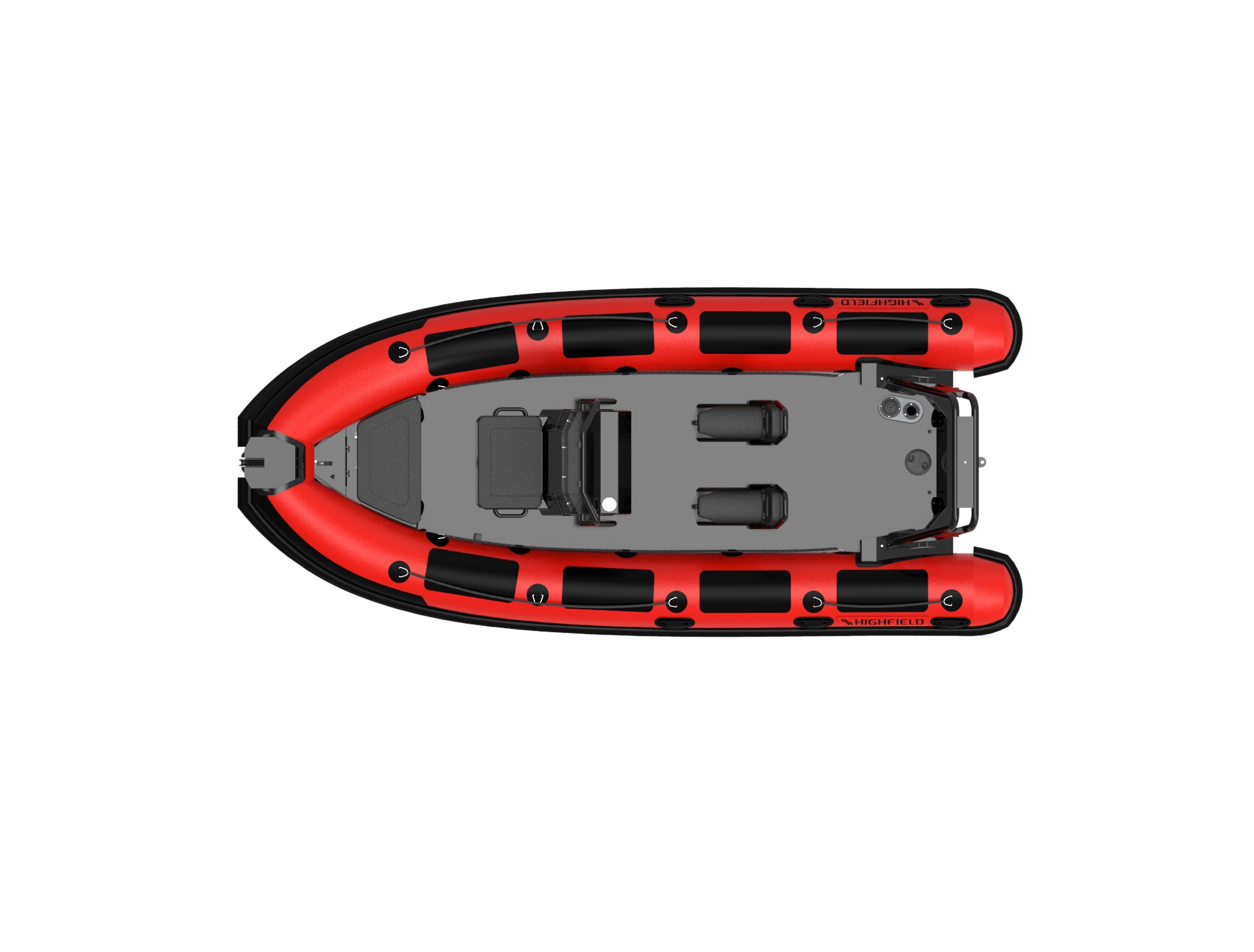

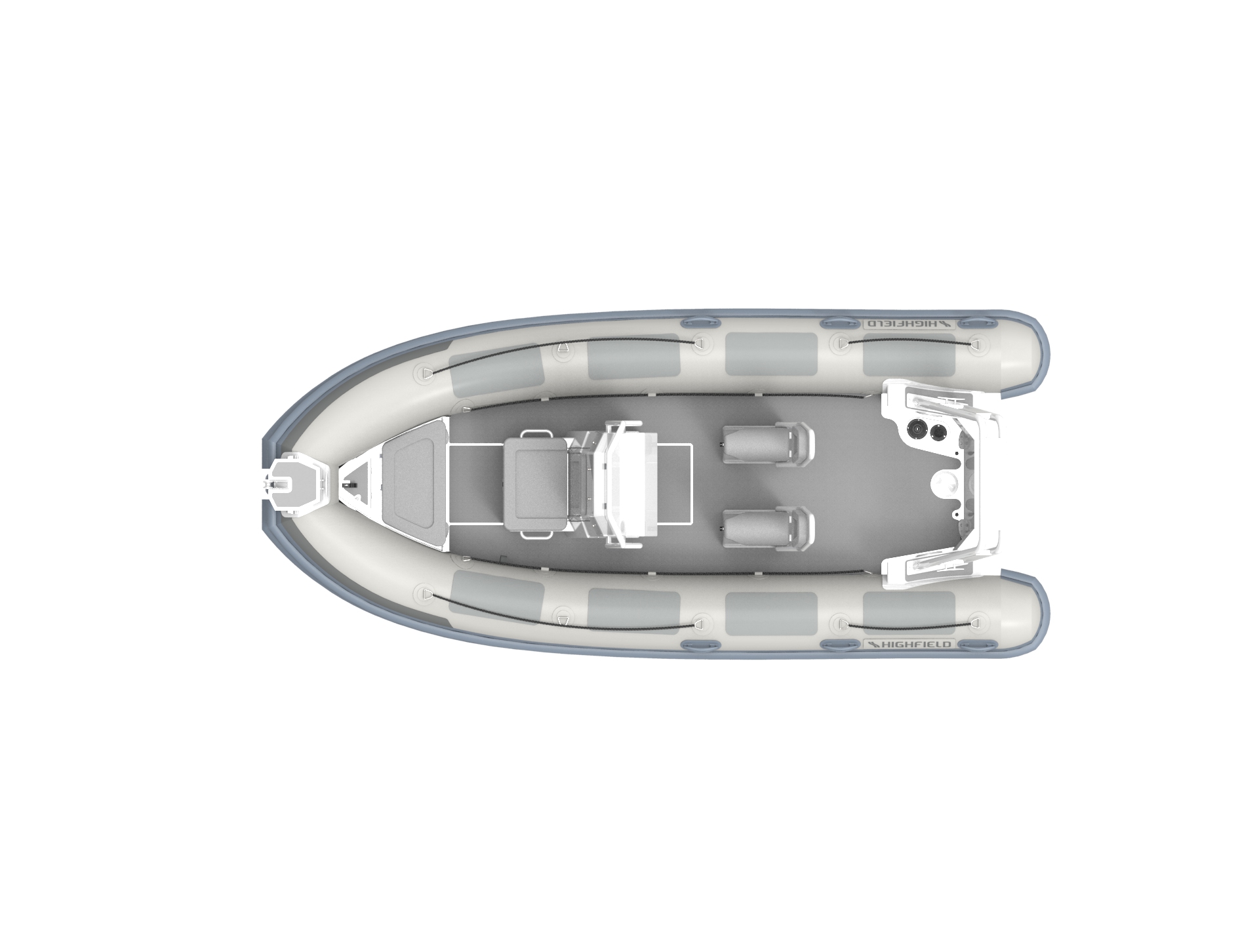

COLOUR SCHEMES
