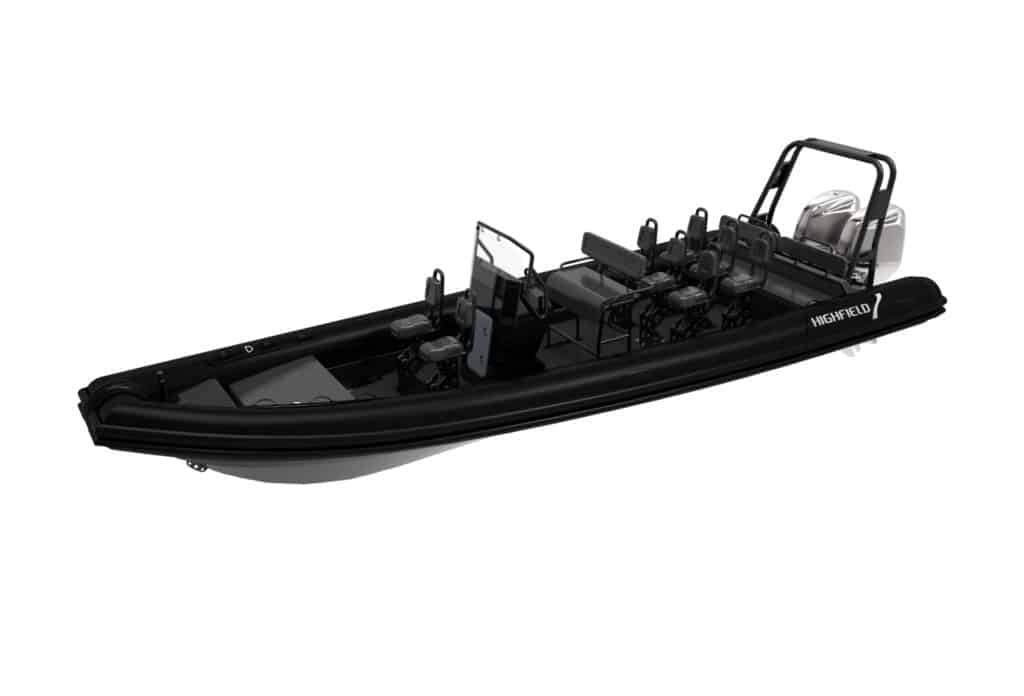

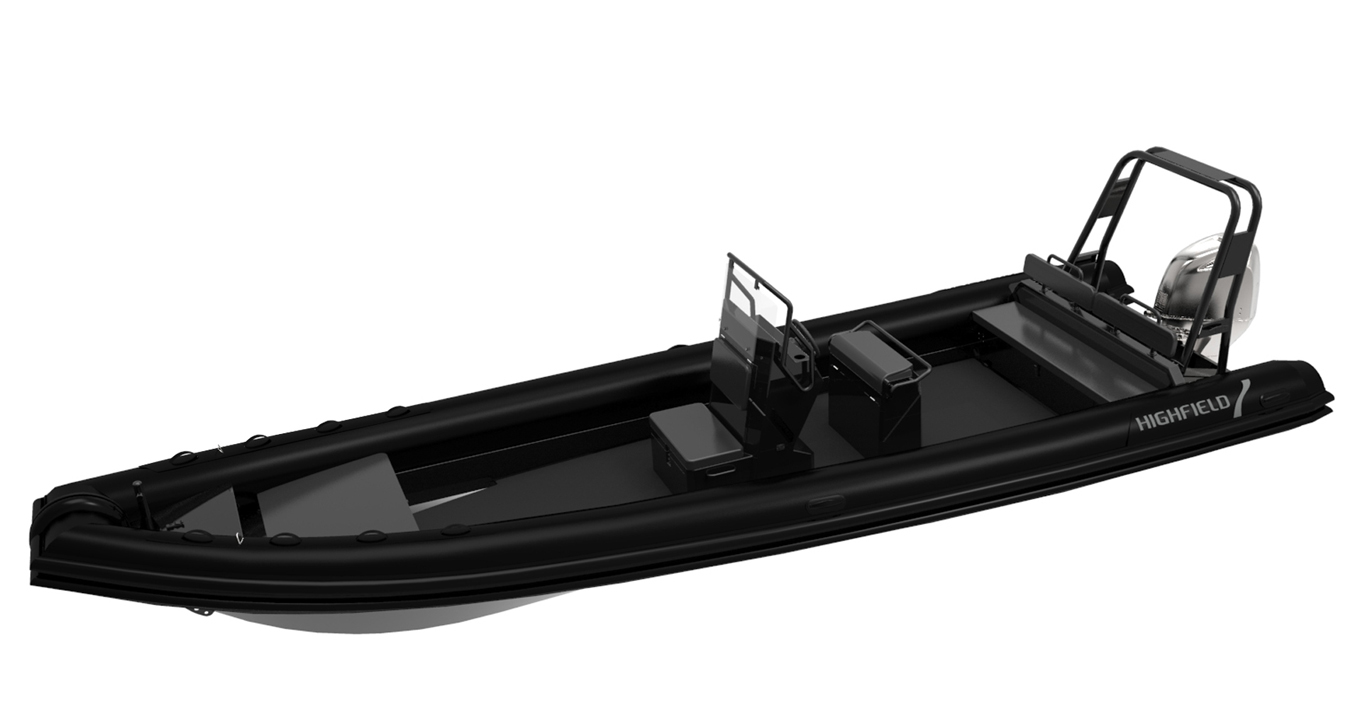

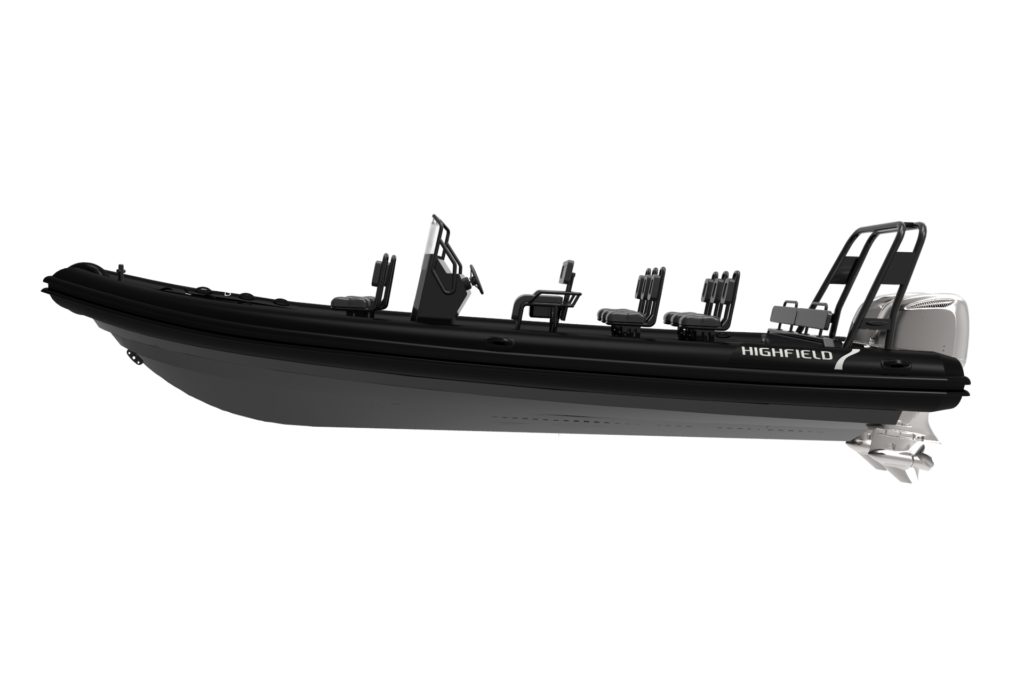

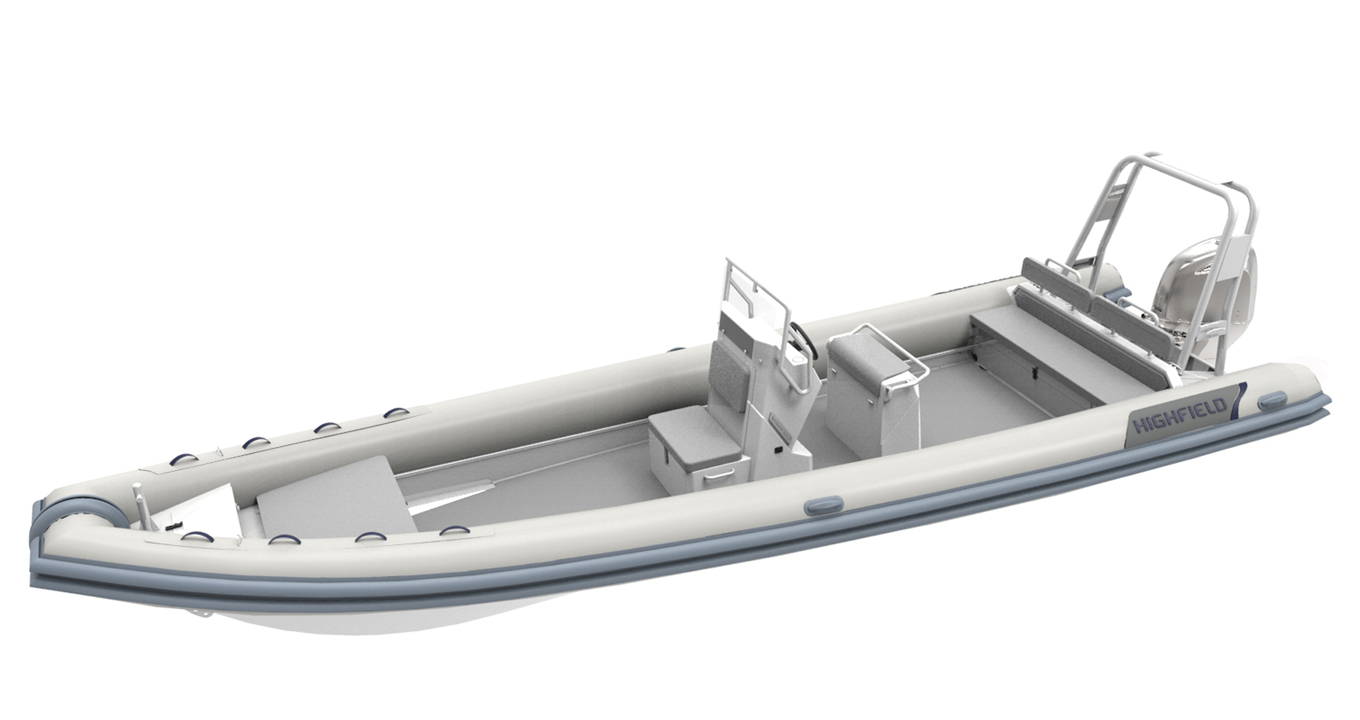

The Patrol range of commercial quality RIBs are designed to work both excellently as a long distance family cruiser or a hardcore work boat. Built to withstand the toughest of conditions.

The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions./span>
The range offers something for almost every requirement, from Sailing club support to Police and Rescue applications.
The Patrol boats carry large loads and plane quickly and easily with little horse-power. For charter boat and commercial operators, the modular set-up option means that we can build a layout that suits your needs. These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.

STANDARD FEATURES

  • ORCA® Hypalon
  • Bow Cushion
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminum hull
  • Integrated transom supports
  • Self-draining deck
  • Integrated under-deck fuel tank (285L)
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rubbing strake
  • Keel guard
  • Highfield dry bag
  • Foot pump, oars, repair kit

OPTIONAL EQUIPMENT

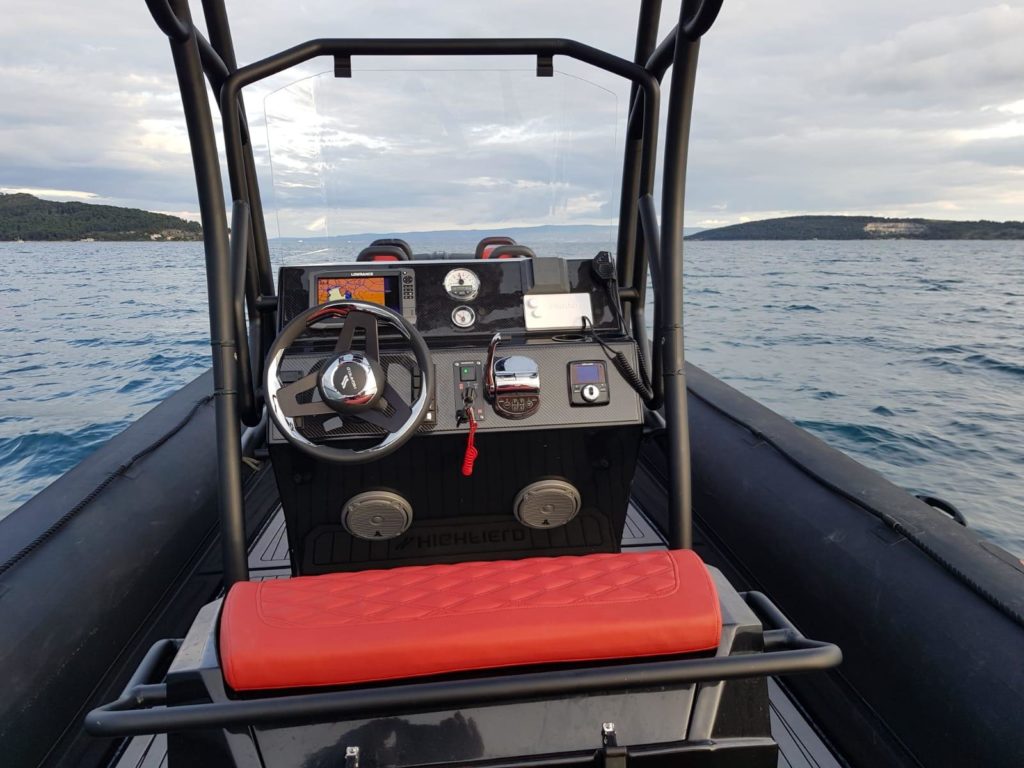

  • Electrical Pack for Console
  • Electrical Pack for Boat

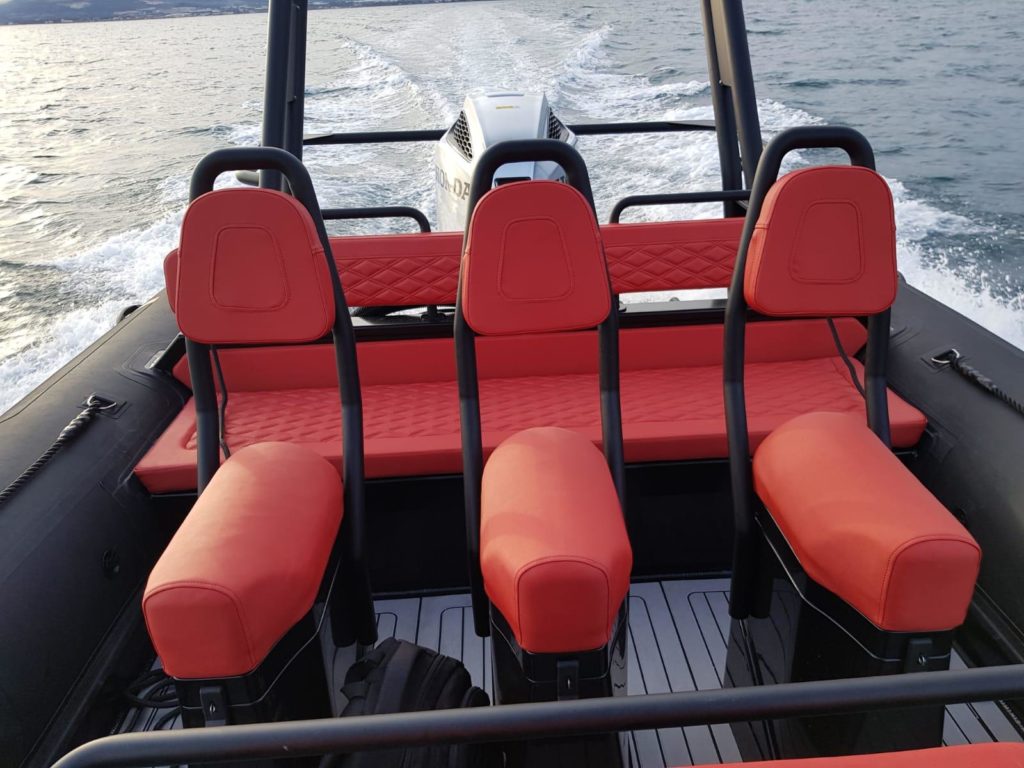

  • Single Jockey or Bolster
  • T-Top
  • T-Top XXL/span>
  • Rollbar
  • Dive Rack
  • Ladder
  • Roll bar with ladder
  • Shower kit
  • Boat Cover
  • Brushed foam teak finish deck/span>
  • Carbon dash
Overall Length8.60 m 28' 3"
Internal Length6.31 m 20' 8"
Overall Width3.10 m 10' 2"
Internal Width1.84 m 6'
Dead Rise26°
Tube Diameter56-40 cm 22-16"
Number of Air Chambers6
Maximum Load2106 kg 4643 lb
Maximum People20
Boat Weight*1392 kg 3069 lb

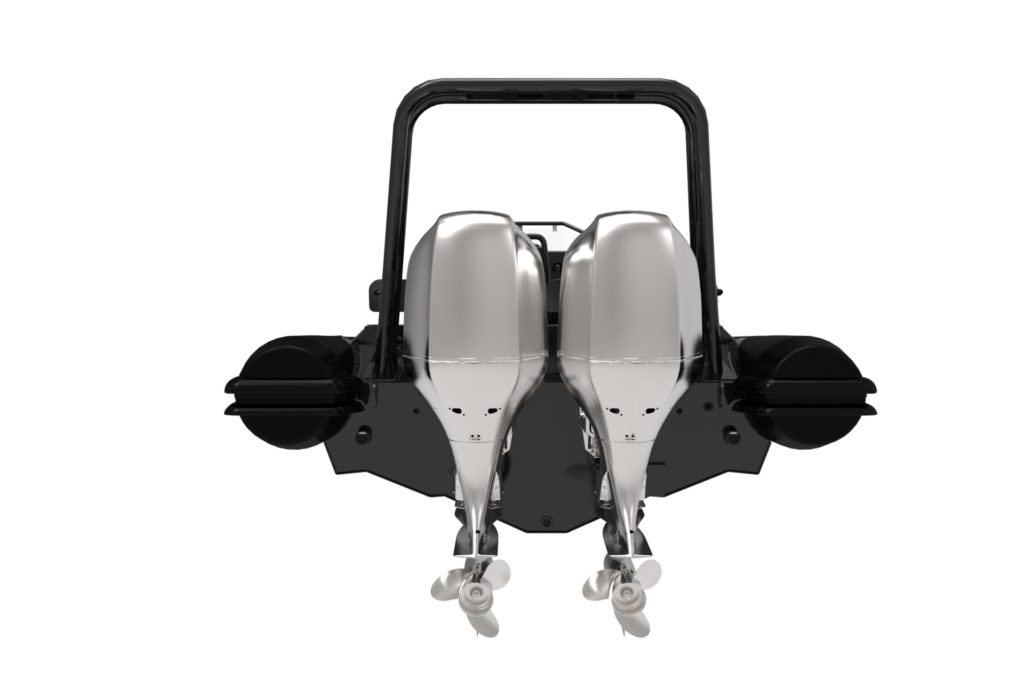

Maximum Power2 x 300 hp
Engine ShaftXL
Fuel Tank430 l94.6 gal
Design CategoryC

Includes console, seat and rollbar
