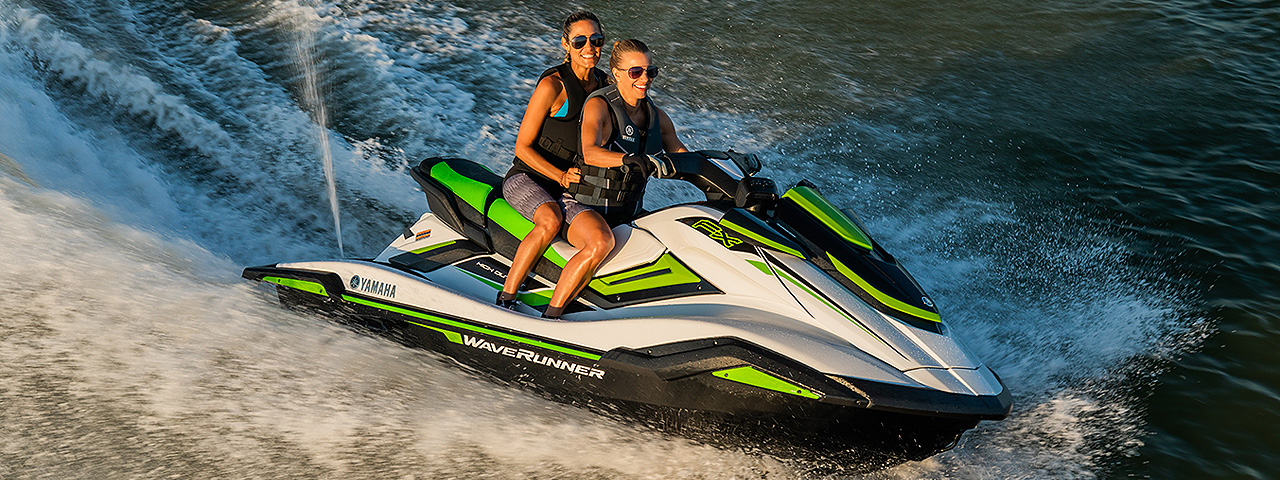

FX HO

Fully equipped for fun.

All the premium Yamaha features backed by a powerful engine.

Color & Specifications

White with Green

Available ColoursWhite with Green
Length (m)3.58 m
Width (m)1.27 m
Height (m)1.23 m
Dry Weight (kg)379
Engine Type4-stroke, 4-cylinder, 4-stroke, 1.8 Liter High Output Yamaha Marine Engine
Displacement1812
Bore x Stroke (mm)86 x 78
Compression Ratio11.0:1
Cooling SystemWater-Cooled
Pump Type155mm High-pressure
Fuel Type RecommendedRegular Unleaded
Fuel Supply SystemElectronic Fuel Injection
Fuel Capacity (liter)70
Lubrication SystemWet Sump
Total Oil Capacity (liter)5.3
Storage Capacity (liter)166.7
Rider Capacity1-3 persons

Features

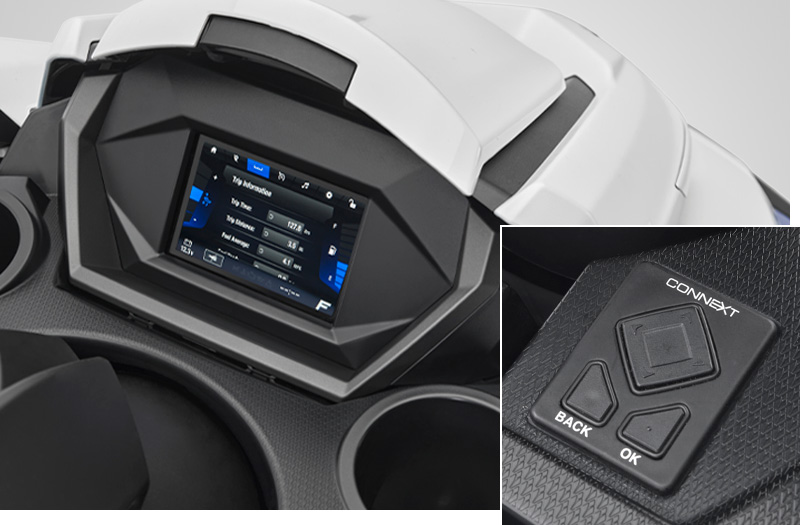

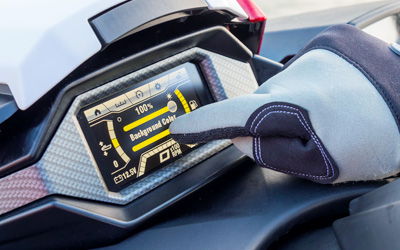

Connext Touchscreen

Features Drive Control for customizing your ride, and provides all vital display functions, and security mode to prevent unauthorized use


Multi-Mount System

Integrated mount accepts hardware for multiple electronics

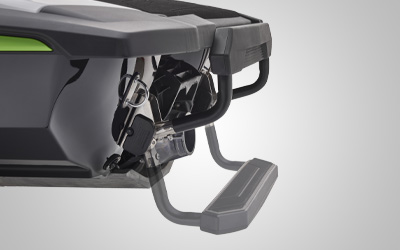

Upgraded Reboarding Step

The FX has dual grab handles and a softer, wider, deeper reboarding step for industry-leading ergonomics.

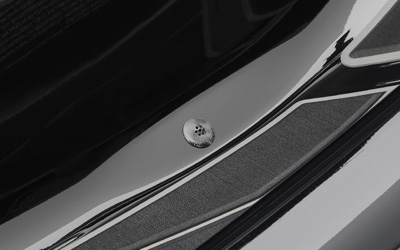

Footwell Drains

Features the self-draining footwells to prevent water pooling.


Styled Gunwale line

1.8 HO ENGINE

Power delivery from the large displacement, High Output 1812cc engine is exhilarating ? and the Hyper-Flow jet pump with its 3-blade impeller helps turn that power into electrifying acceleration. The Electronic Fuel Injection (EFI) gives the smoothest possible power output and efficient, economical running, even on regular unleaded fuel.


NanoXcel Deck & Hull

NanoXcel hull delivers an impressive power-to-weight ratio, agile ride and industry-leading fuel efficiency.

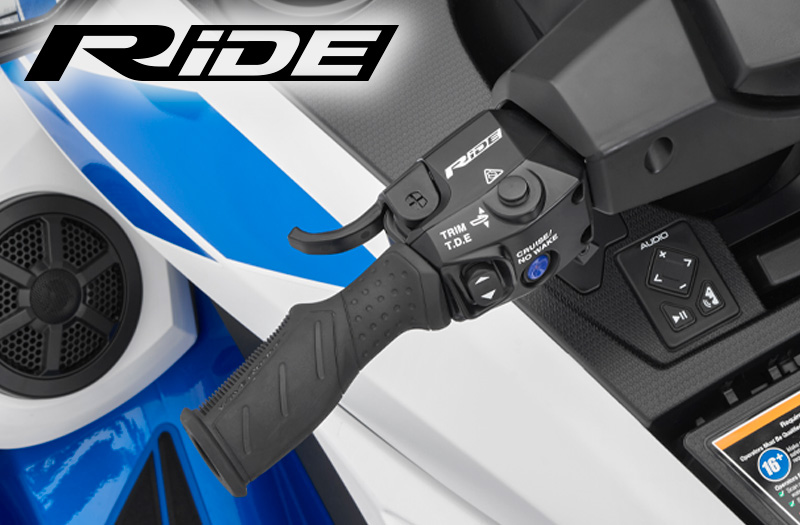

RiDE

Drivers switch from forward to neutral to reverse with one pull of the throttle resulting in easier deceleration, reversing and docking.

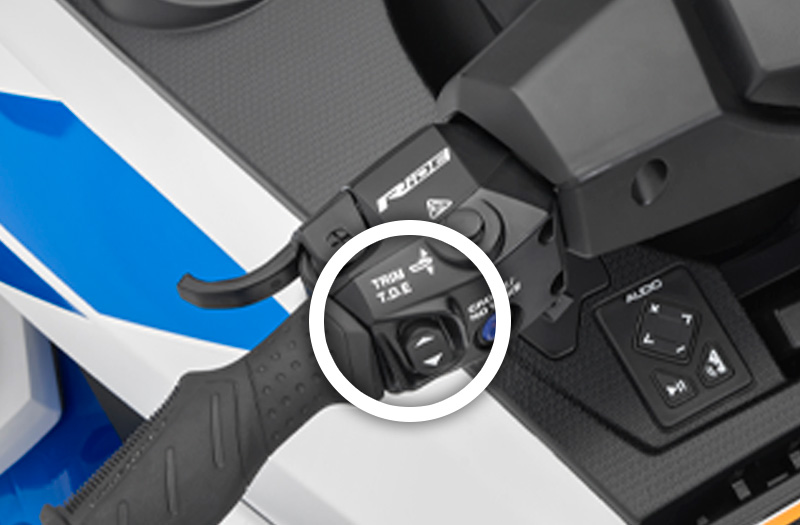

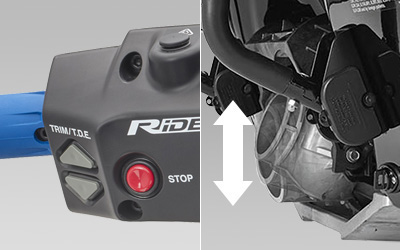

Electric Trim

Trim can be adjusted simply by operating the buttons laid out on the left handle switch box.

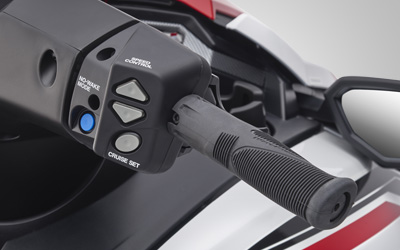

Cruise Assist / No Wake Mode

Find the perfect towing speed or set "no wake" instantly.

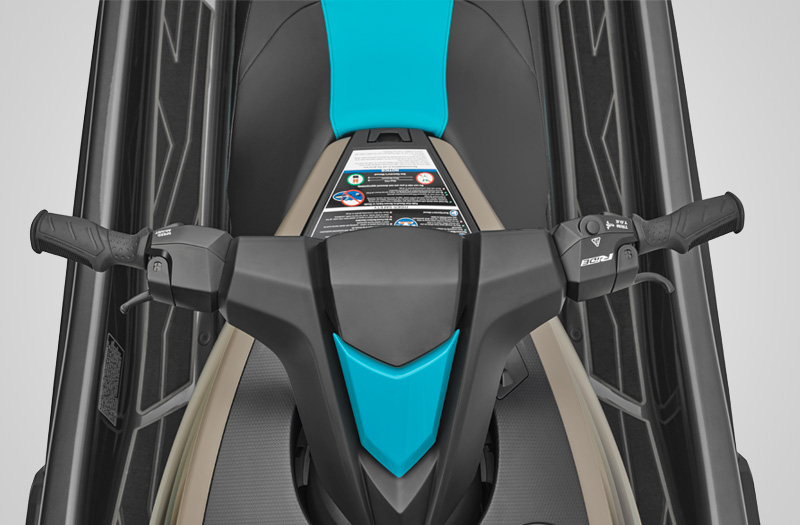

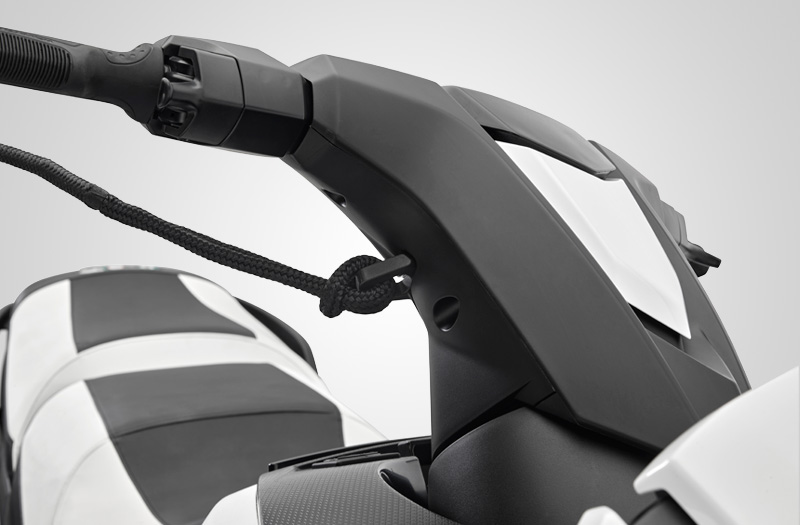

Adjustable Tilt Steering System

Set the handlebars according to your riding preferences.

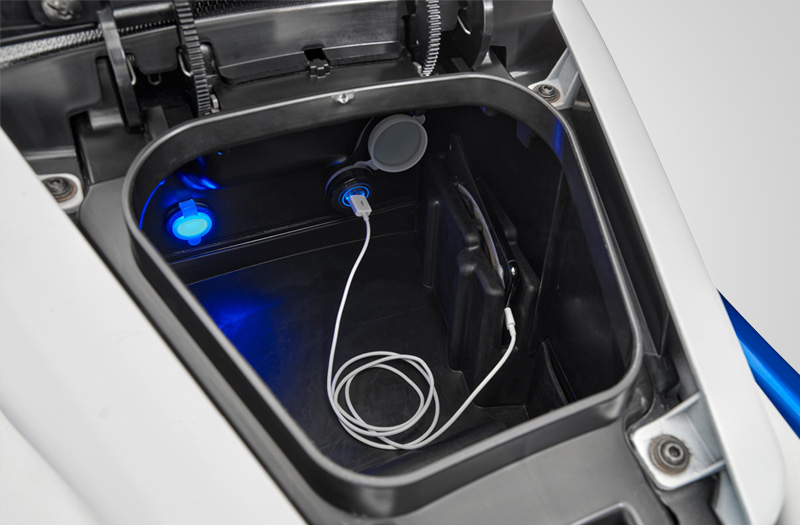

Watertight glovebox

Newly installed watertight glovebox.

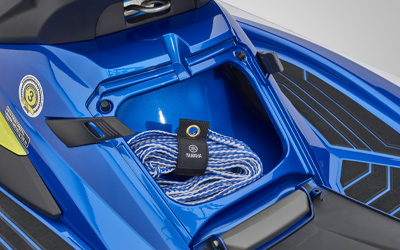

Stern/Platform Storage

The fast access stern storage provides the perfect place for towing gear.


Custom Cut Two-Tone Deck Mats

Tow Hook

Uniquely designed for the Limited, the tow hook is perfect for tube hook-up.

  • Body and seat colors may differ from the actual models. In some cases, photos from other models may have been used. Please consult your nearest dealer before purchase.
  • Please consult your nearest dealer for details regarding equipment and optional parts.
  • Accessories shown in the photos are not included with these products.
  • Product names, coloring and graphics may differ by country or area.
  • Specifications are subject to change without notice.
